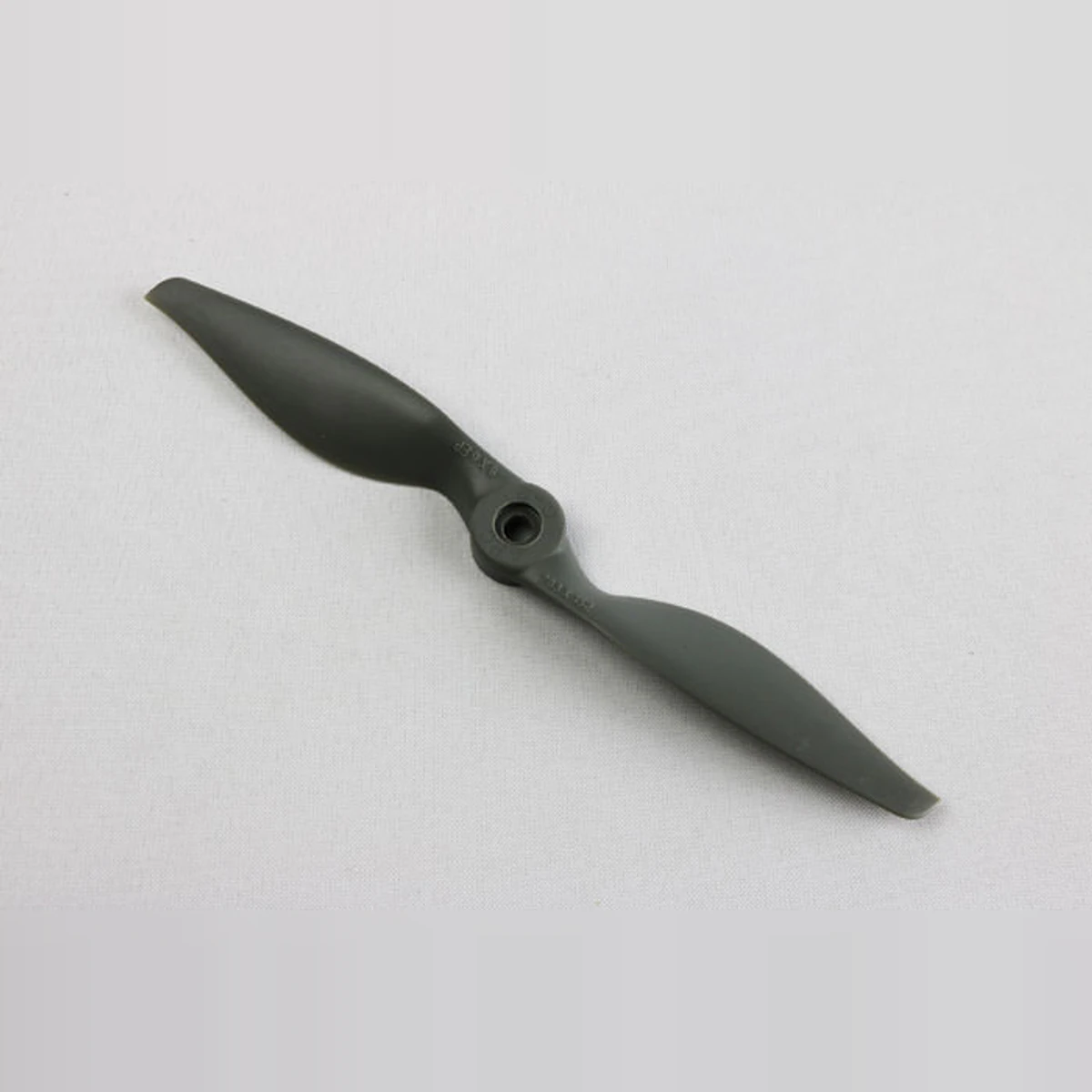

Photo shows the APC 8x6EP, which APC also uses for this prop; the 8x8EP looks the same apart from its higher pitch.
APC
APC Thin Electric Pusher 8x8EP
SKU RCP-APC-8080R-2 · NDAA compliant · Made in USA
8″ × 8 pitch · 2-blade · Glass-fiber composite
$5.49 per pack of 1 (1 prop, pusher (reverse rotation), with LPAR06E adapter rings)
0 in stock
APC's thin electric pusher prop: reverse rotation for pusher-configured planes and wings, molded from APC's long glass-fiber composite. APC's limit for thin electric props is 150,000 ÷ diameter, so keep this 8" prop under 18,750 RPM. The matching standard-rotation version is the 8x8E.
Specifications
| Brand | APC |
|---|---|
| SKU | RCP-APC-8080R-2 |
| Manufacturer part | LP08080EP |
| In stock | 0 |
| Made in | USA |
| NDAA compliant | Yes, made in USA |
| Diameter | 8 in (203.2 mm) |
| Pitch | 8 in |
| Blades | 2 |
| Material | Glass-fiber composite |
| Rotation | CW only |
| Category | Airplane |
| Type | Fixed |
| Pack | 1 prop (1 prop, pusher (reverse rotation), with LPAR06E adapter rings) |
| Mount | 1/4" shaft; hub 0.80" dia, 0.40" thick; includes one set of LPAR06E adapter rings |
| Weight | 15 g per prop |
| Color | Grey |
| Suggested use | Pusher planes and flying wings |
