Gemfan

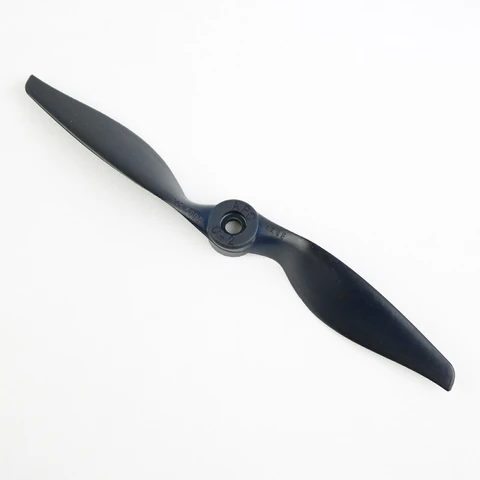

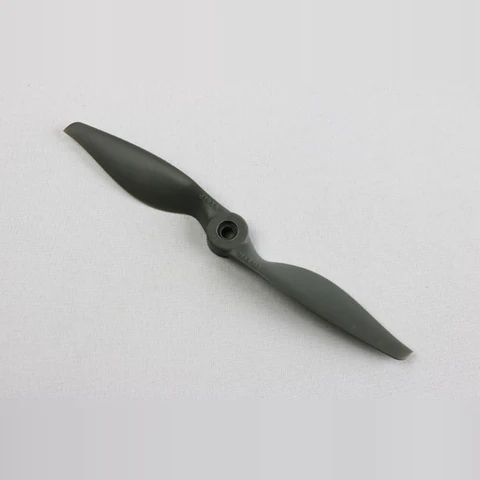

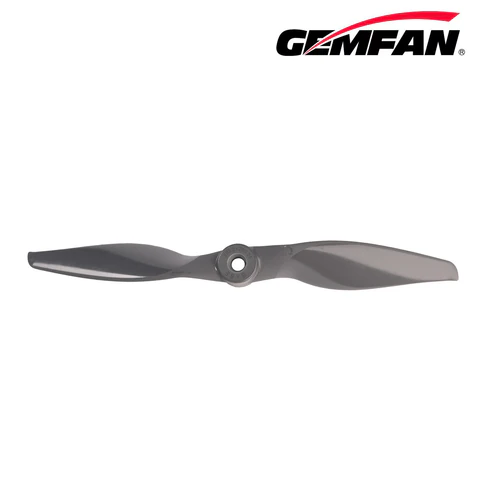

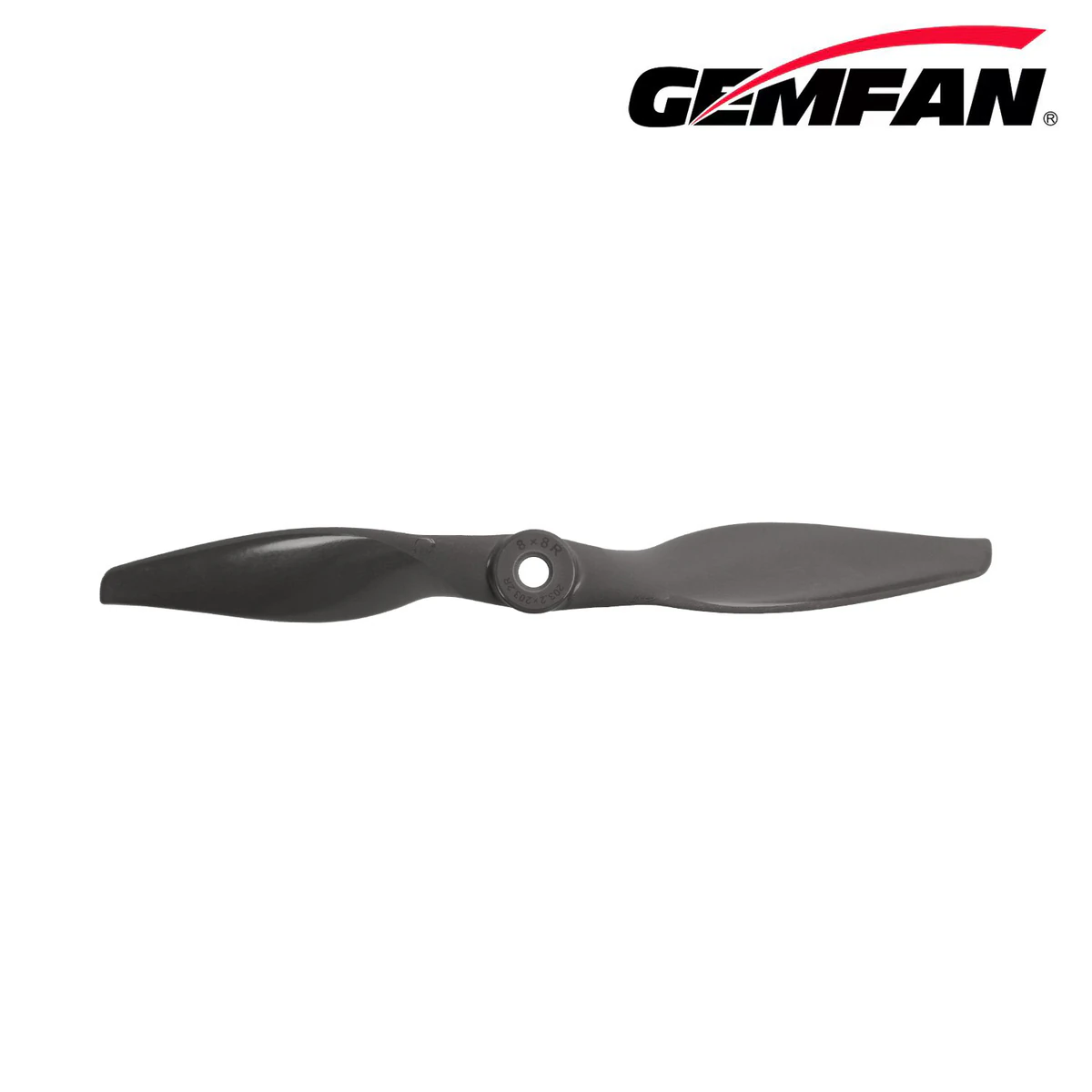

Gemfan Vortex 8x8E Electric
SKU RCP-GF-8080-2
8″ × 8 pitch · 2-blade · Glass-filled nylon
$20.99 per pack of 2 (2 standard (tractor) rotation, with 5 adapter rings)
0 in stock
Gemfan's VORTEX fixed-wing electric prop in glass-fiber nylon: a new airfoil profile, a frosted leading edge for efficiency at high RPM, and precision dynamic balancing. In Gemfan's test on a 2812 1100KV motor at 6S (22.2 V) the 8x8 made about 730 g of thrust at half throttle (9.9 A) and 1.77 kg at full throttle (43.5 A, about 14,600 RPM), so size your ESC and battery for the current. For pusher setups, see the 8x8R.
Specifications
| Brand | Gemfan |
|---|---|
| SKU | RCP-GF-8080-2 |
| Manufacturer part | Vortex 8X8E |
| In stock | 0 |
| Diameter | 8 in (203.2 mm) |
| Pitch | 8 in |
| Blades | 2 |
| Material | Glass-filled nylon |
| Rotation | CCW only |
| Category | Airplane |
| Type | Fixed |

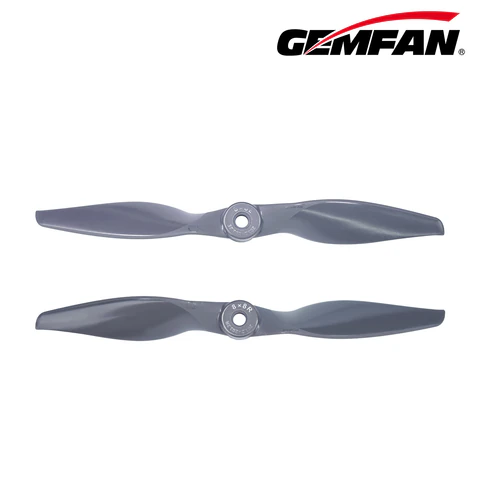

| Pack | 2 props (2 standard (tractor) rotation, with 5 adapter rings) |
| Mount | 6.35mm (1/4") bore; adapter rings 3, 4, 5, 6 and 7mm included; hub 19mm dia, 11.8mm thick |
| Weight | 17.3 g per prop |
| Color | Grey |
| Suggested motors | 2812 |
| Suggested KV | ~1100KV (6S) |
| Suggested use | Fast fixed-wing sport planes |
